10G SFP+ 850nm 300m Optical Transceiver Module
Features
· Hot Pluggable SFP+ form factor
· Up to 11.3Gbps Data Links
· LC Duplex optical interface
· 850nm VCSEL transmitter and PIN/TIA receiver
· Operating case temperature:0 to 70 °C
· Low power consumption <1.0W
· Applicable for 300m links on 50/125um OM3 MMF Allmetal housing for superior EMI performance
· IIC management interface
· Single +3.3V power supply
Applications
· 10GBASE-SR/SW Ethernet
· 10G Fiber Channel
Standards
· SFP-SFF-8431 and SFF-8432
· SFF-8472 SFP+ MSA
· IEEE802.3ae
Ordering information
| Part Number |
Product Description |
| MF1H-85T5 |
SFP+, 10G, 850nm, 300m, 0ºC ~ +70ºC, |
Description
· The transceiver is designed to meet the requirements of 300m links over OM3 MMF . It is compliant with SFP+
MSA and IEEE 802.3ae standard. It is cost-effective, low power consumption with a single 3.3V power supply.
The low jitter and low bit error rate optical assembly features a 850nm VCSEL transmitter and a PIN/TIA receiver. The differential AC coupled Tx and Rx data interfaces are CML compatible. It is fabricated with all-metal and compact size housing for superior EMI performance.
Absolute Maximum Ratings
| Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Power Supply Voltage |
Vcc |
-0.5 |
|
4 |
V |
| Storage Temperature Range |
Ts |
-40 |
- |
85 |
°C |
| Relative Humidity - Storage |
RHS |
0 |
- |
85 |
% |
| Relative Humidity - Operating |
RHO |
0 |
- |
85 |
%
|
Recommended Operating Conditions
| Parameter |
Symbol |
Min |
Typ. |
Max |
Unit |
| Case Operating Temperature Range |
Tc |
0 |
|
70 |
°C |
| Power Supply Voltage |
VCC |
3.13 |
3.3 |
3.47 |
V |
| Total Power Consumption |
P |
- |
- |
1.0 |
W |
| Data Rate |
BR |
1.25 |
10.3125 |
11.1 |
Gbps |
Product Tags:
|
|

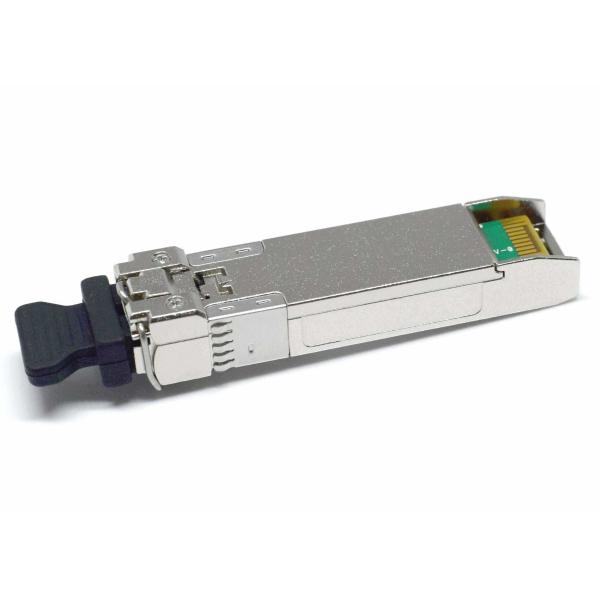

10G SFP+ 850nm 300m Optical Transceiver Module LC Duplex Optical Interface Images
|
